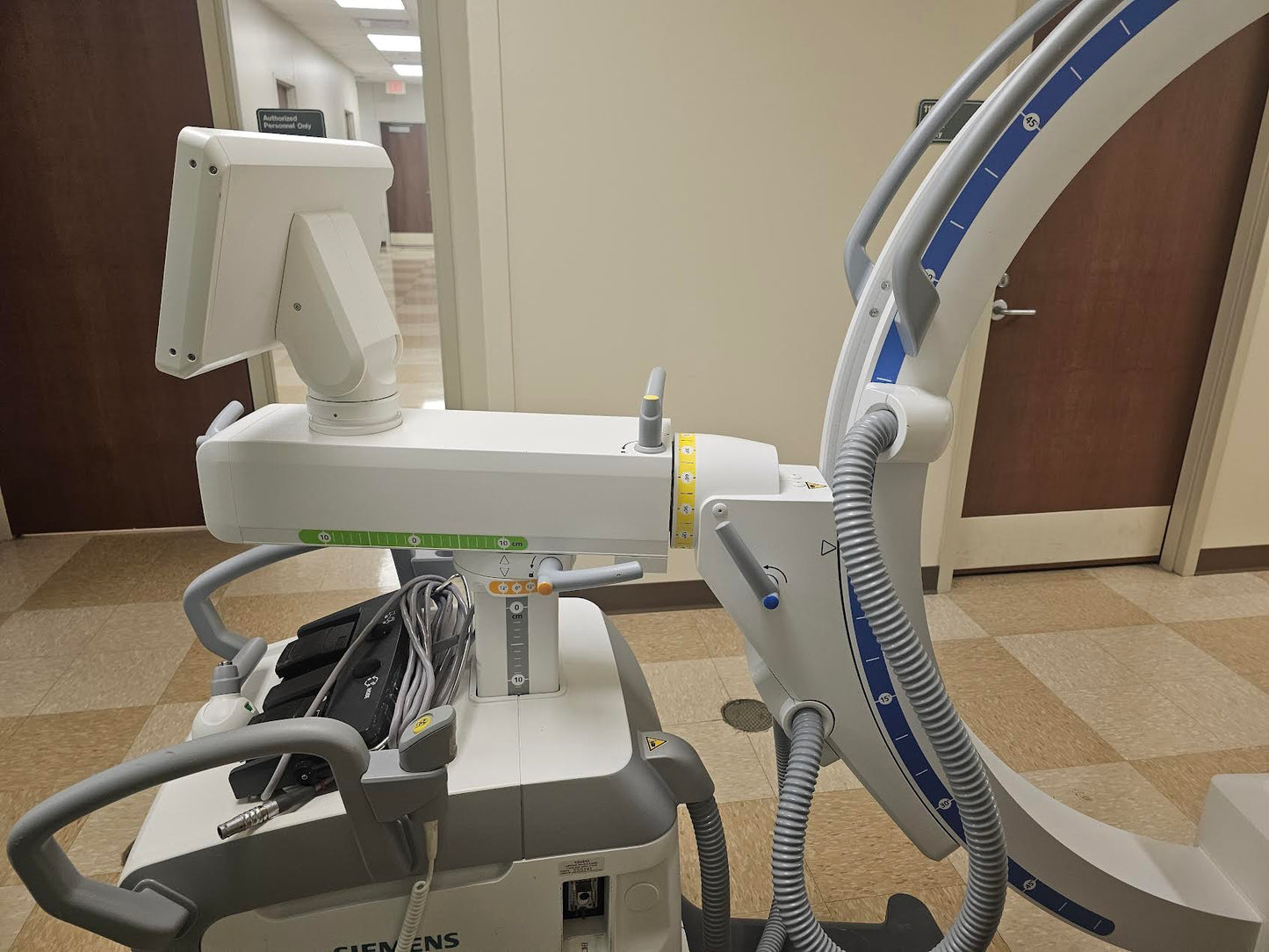

Siemens CiOS Fusion - 2017 with Vascular Update
With Cios Fusion, you can increase the competitiveness and surgical versatility of your institution by equipping your OR with innovative imaging technologies. The mobile C-arm provides large, crystal-clear images at the right dose – thanks to Full View FD and our unique Retina Imaging Chain with IDEAL dose management.
|
System specification |
|
|
Detector technology |
Flat detector (FD) |
|
Field of view |
30 cm x 30 cm (12" x 12")1 |
|
Image resolution |
1.5 K² 1 / 1 K² |
|
Power Output |
2.3 kW |
|
Orbital movement |
150° (- 40° to + 110°) |
|
Immersion depth |
73 cm (28.7”) |
|
Free space |
82 cm (32.2”), with attached grid |
|
Monitors |
2 x 19" premium high bright1 |
|
Image storage |
150.000 images |
|
WLAN |
yes1 |
|
Clinical applications and workflows |
|
|
Vascular software |
Standard1 and Premium1 |
|
Live Graphical Overlay |
yes1 |
|
Stenosis quantification |
yes1 |
|
2D Measurement |
yes1 |
|
Injector trigger interface |
yes1 |
|
Navigation interface |
NaviLink 2D1 |
|
Cooling system tube |
Passive |
|
Smart View - HD VideoManager |
yes1 |
|
CARE program |
yes |
|
IDEAL (dose management) |
yes |
|
DICOM Services |
DICOM Send / Storage Commitment1 |
|
|
|
|
System control |
|
|
Control technology |
Touch screen |
|
Breaks control |
Manual |
|
Table side control |
yes, remote user interface1 |
|
Position storage |
1 position1 |
|
|
|
|
Room planning |
|
|
Unit fuse protection |
100 V to 127 V 20 A slow-blow fuse |
|
Dimensions C-arm |
195.5 cm x 80.5 cm x 162 cm |
|
Dimension monitor cart |
70 cm x 74 cm x 182 cm |
|
Weight C-arm |
272 kg (600 lbs) |
|
Weight monitor cart |
230 kg (506 lbs) (including 2 monitors, UPS) |
